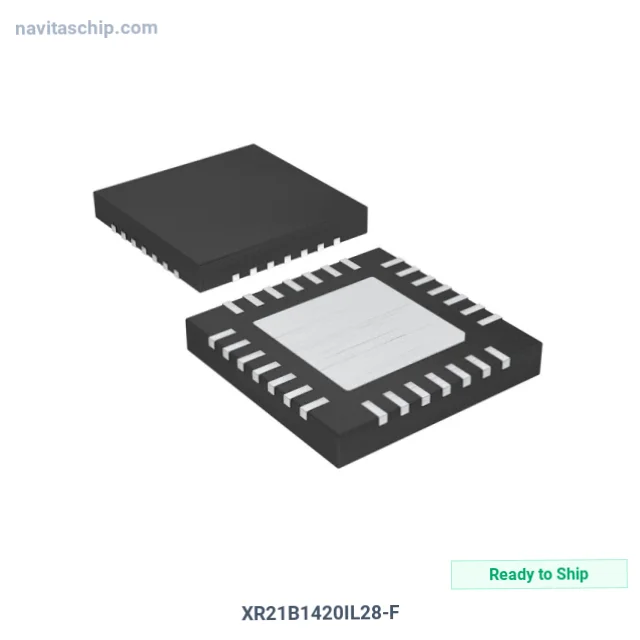

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | XR21B1420IL28-F |
| Manufacturer | MaxLinear, Inc. |
| NavitasChip Part Number | NAVI-5080590 |
| Description | IC UART TXRX 512B 1CH 28QFN |
| Spec | 28-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | MaxLinear, Inc. |
| Package | Tray |
| Product Status | Active |
| Protocol | USB |
| Function | Bridge, USB to UART |
| Interface | UART |
| Standards | USB 2.0 |
| Voltage - Supply | 3V ~ 5.25V |
| Current - Supply | 15mA |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 28-QFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | MaxLinear, Inc. XR21B1420IL28-F Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The XR21B1420IL28-F is an Interface Controller IC manufactured by MaxLinear, Inc.. Integrated Circuit UART Transceiver 512b 1ch in 28-Pin QFN Package, housed in a compact 28-QFN (5x5) package, with 3V ~ 5.25V supply voltage.
Struggling with supply gaps during industrial automation product lifecycle ramps? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Supply Voltage: 3V ~ 5.25V
- Interface: UART
- Operating Temperature: -40°C ~ 85°C
- Package: 28-VFQFN Exposed Pad
- Device Package: 28-QFN (5x5)
- RoHS Compliant
Applications
Designed for:
- test and measurement instrumentation
- building automation and energy management systems
- solar inverters and renewable energy power conversion
Why Choose NavitasChip for XR21B1420IL28-F?
NavitasChip offers Allocated parts in stock when authorized channels face shortage for the XR21B1420IL28-F and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
XR21B1420IL28-F sourced and shipped via our Asia-Pacific distribution network.
XR21B1420IL28-F - Request a quote today.
