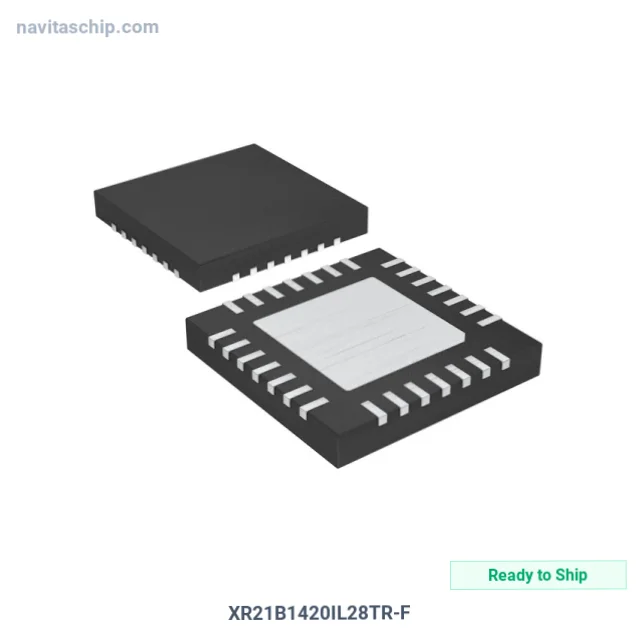

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | XR21B1420IL28TR-F |
| Manufacturer | MaxLinear, Inc. |
| NavitasChip Part Number | NAVI-5080504 |
| Description | IC UART TXRX 512B 1CH 28QFN |
| Spec | 28-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | MaxLinear, Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Protocol | USB |
| Function | Bridge, USB to UART |
| Interface | UART |
| Standards | USB 2.0 |
| Voltage - Supply | 3V ~ 5.25V |
| Current - Supply | 15mA |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 28-QFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | MaxLinear, Inc. XR21B1420IL28TR-F Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The XR21B1420IL28TR-F is an Interface Controller IC manufactured by MaxLinear, Inc.. Integrated Circuit UART Transceiver 512b 1-Channel in 28-Pin QFN Package, housed in a compact 28-QFN (5x5) package, with 3V ~ 5.25V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 5.25V
- Interface: UART
- Operating Temperature: -40°C ~ 85°C
- Package: 28-VFQFN Exposed Pad
- Device Package: 28-QFN (5x5)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
