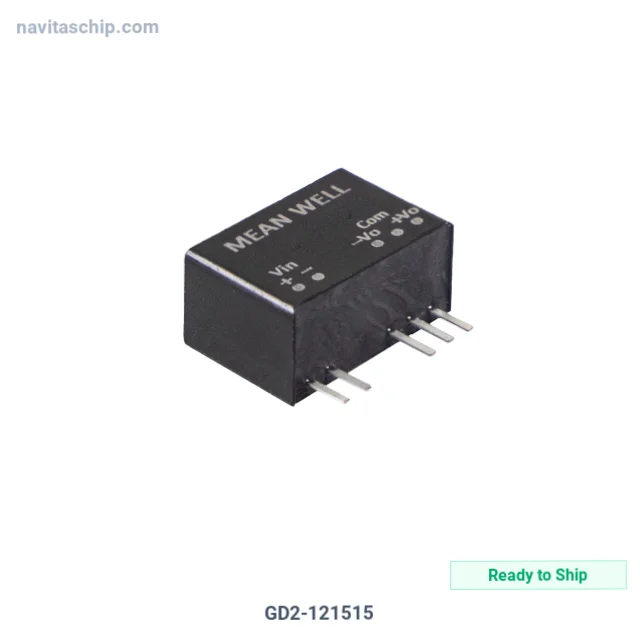

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | GD2-121515 |
| Manufacturer | MEAN WELL USA Inc. |
| NavitasChip Part Number | NAVI-25578362 |
| Description | 2W;I:12VDC;O:+15/-15VDC@+67/-67M |
| Spec | 7-SIP, 5 Leads |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | MEAN WELL USA Inc. |
| Package | Bulk |
| Product Status | Active |
| Output Configuration | Positive and Negative (Dual Rail) |
| Output Type | Fixed |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output (Min/Fixed) | -15V, 15V |
| Current - Output | 67mA, 67mA |
| Frequency - Switching | 20kHz ~ 130kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 90°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 7-SIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | MEAN WELL USA Inc. GD2-121515 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The GD2-121515 is a DC-DC Switching Voltage Regulator manufactured by MEAN WELL USA Inc.. 2W;i:12vdc;o:+15/-15vdc@+67/-67m, housed in a compact 7-SIP package.
Key Technical Specifications
- Output Type: Fixed
- Operating Temperature: -40°C ~ 90°C
- Mounting: Through Hole
- Package: 7-SIP, 5 Leads
- Device Package: 7-SIP
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
