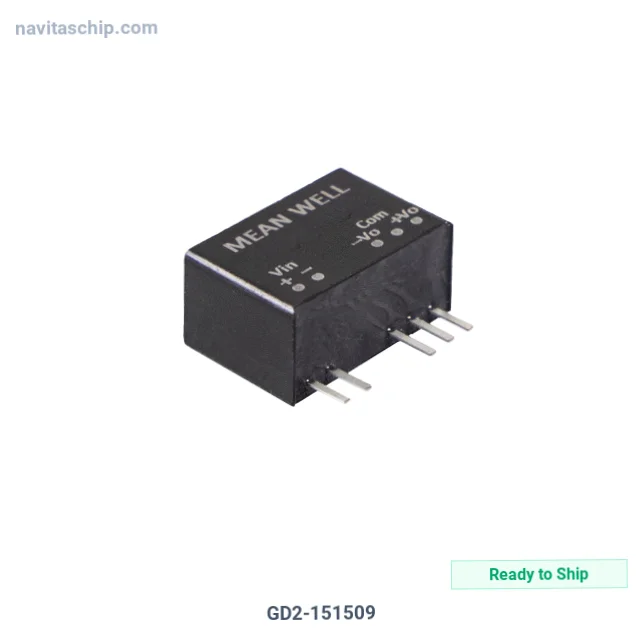

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | GD2-151509 |
| Manufacturer | MEAN WELL USA Inc. |
| NavitasChip Part Number | NAVI-25578374 |
| Description | 2W;I:15VDC;O:+15/-9VDC@+100/-60M |
| Spec | 7-SIP, 5 Leads |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | MEAN WELL USA Inc. |
| Package | Bulk |
| Product Status | Active |
| Output Configuration | Positive and Negative (Dual Rail) |
| Output Type | Fixed |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output (Min/Fixed) | -9V, 15V |
| Current - Output | 60mA, 100mA |
| Frequency - Switching | 20kHz ~ 130kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 90°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 7-SIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | MEAN WELL USA Inc. GD2-151509 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The GD2-151509 is a DC-DC Switching Voltage Regulator manufactured by MEAN WELL USA Inc.. 2W;i:15vdc;o:+15/-9vdc@+100/-60m, housed in a compact 7-SIP package.
Key Technical Specifications
- Output Type: Fixed
- Operating Temperature: -40°C ~ 90°C
- Mounting: Through Hole
- Package: 7-SIP, 5 Leads
- Device Package: 7-SIP
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
