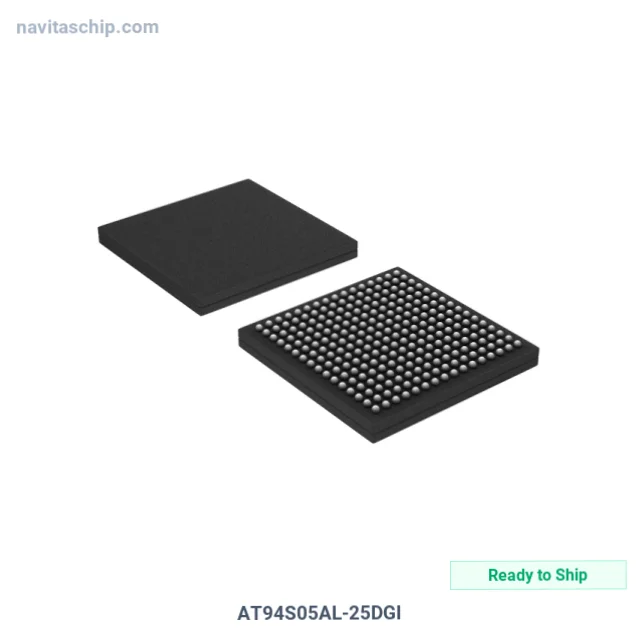

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AT94S05AL-25DGI |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-524026 |
| Description | IC FPSLIC 5K GATE 25MHZ 256BGA |
| Spec | 256-LBGA, CABGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | FPGAs (Field Programmable Gate Array) with Microcontrollers |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Obsolete |
| Core Type | 8-Bit AVR |
| Speed | 25 MHz |
| Interface | I2C, UART |
| Program SRAM Bytes | 4K-16K |
| FPGA SRAM | 2kb |
| EEPROM Size | 256K x 8 |
| Data SRAM Bytes | 4K ~ 16K |
| FPGA Core Cells | 256 |
| FPGA Gates | 5K |
| FPGA Registers | 436 |
| Voltage - Supply | 3V ~ 3.6V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 256-CABGA (17x17) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology AT94S05AL-25DGI Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AT94S05AL-25DGI is an Embedded Processor manufactured by Microchip Technology (Microchip). Integrated Circuit Fpslic 5k Gate operating at 25MHz in 256-Pin BGA Package, housed in a compact 256-CABGA (17x17) package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Interface: I2C, UART
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 256-LBGA, CABGA
- Device Package: 256-CABGA (17x17)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
