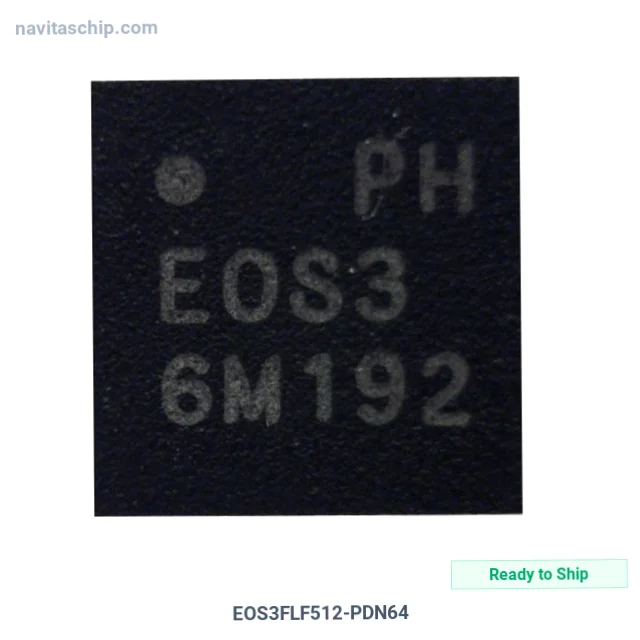

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | EOS3FLF512-PDN64 |
| Manufacturer | QuickLogic |
| NavitasChip Part Number | NAVI-14835922 |
| Description | EOS S3 ULTRA LOW POWER SENSOR & |
| Spec | 64-TFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | FPGAs (Field Programmable Gate Array) with Microcontrollers |
| Manufacturer | QuickLogic |
| Package | Tray |
| Product Status | Active |
| Core Type | 32-Bit ARM M4F |
| Speed | 80 MHz |
| Interface | I2C, UART, SPI, PDM, I2S, 12-bit ADC |
| Program SRAM Bytes | 512K |
| FPGA SRAM | 64kb |
| Data SRAM Bytes | 512K |
| FPGA Core Cells | 891 |
| FPGA Gates | 2k |
| FPGA Registers | 891 |
| Voltage - Supply | 1.1V |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C ~ 85°C (TJ) |
| Supplier Device Package | 64-BGA (3.5mm x 3.5mm) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | QuickLogic EOS3FLF512-PDN64 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The EOS3FLF512-PDN64 is an Embedded Processor manufactured by QuickLogic. Eos S3 Ultra Low Power Sensor &, housed in a compact 64-BGA (3.5mm x 3.5mm) package, with 1.1V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.1V
- Interface: I2C, UART, SPI, PDM, I2S, 12-bit ADC
- Operating Temperature: -20°C ~ 85°C (TJ)
- Mounting: Surface Mount
- Package: 64-TFBGA
- Device Package: 64-BGA (3.5mm x 3.5mm)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
