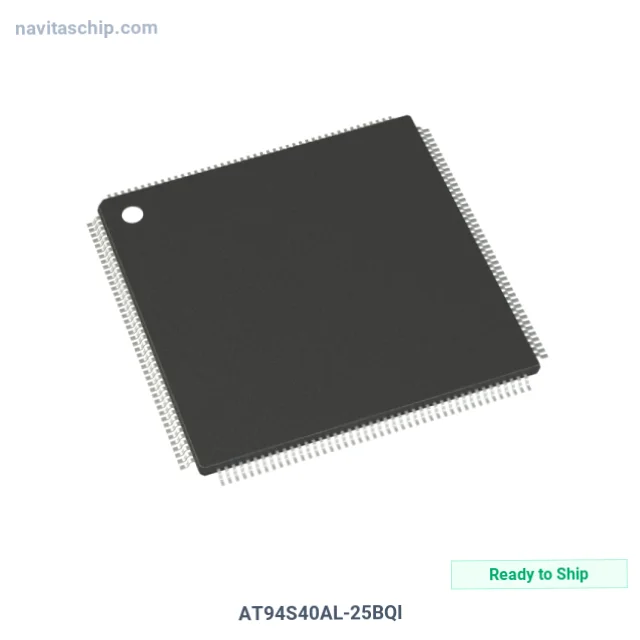

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AT94S40AL-25BQI |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-609217 |
| Description | IC FPSLIC 40K GATE 144LQFP |
| Spec | 144-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | FPGAs (Field Programmable Gate Array) with Microcontrollers |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Obsolete |
| Core Type | 8-Bit AVR |
| Speed | 16 MHz |
| Interface | I2C, UART |
| Program SRAM Bytes | 20K-32K |
| FPGA SRAM | 18kb |
| EEPROM Size | 1M x 8 |
| Data SRAM Bytes | 4K ~ 16K |
| FPGA Core Cells | 2304 |
| FPGA Gates | 40K |
| FPGA Registers | 2862 |
| Voltage - Supply | 3V ~ 3.6V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 144-LQFP (20x20) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology AT94S40AL-25BQI Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AT94S40AL-25BQI is an Embedded Processor manufactured by Microchip Technology (Microchip). Integrated Circuit Fpslic 40k Gate in 144-Pin LQFP Package, housed in a compact 144-LQFP (20x20) package, with 3V ~ 3.6V supply voltage. Industrial temperature range (-40°C to +85°C).
Facing production line down? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Interface: I2C, UART
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 144-LQFP
- Device Package: 144-LQFP (20x20)
Applications
Commonly utilized in:
- data center networking acceleration
- industrial vision and inspection systems
- cryptographic and security acceleration
- low-power edge computing
Why Choose NavitasChip for AT94S40AL-25BQI?
NavitasChip offers obsolete part procurement when authorized distributors discontinue support for the AT94S40AL-25BQI and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
AT94S40AL-25BQI sourced and shipped via our Asia-Pacific distribution network.
AT94S40AL-25BQI - Upload your BOM for fast pricing.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
