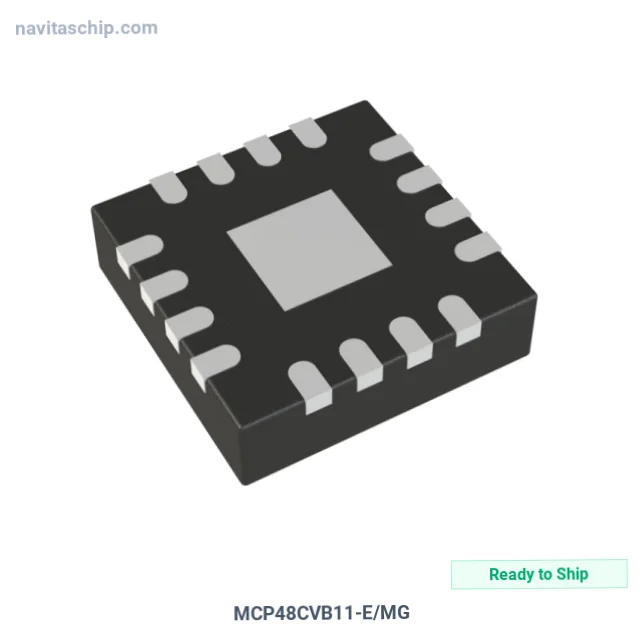

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCP48CVB11-E/MG |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-9947579 |
| Description | IC DAC 10BIT 16QFN |
| Spec | 16-VFQFN Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Microchip Technology |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 10 |
| Number of D/A Converters | 1 |
| Settling Time | 16µs |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External, Internal |
| INL/DNL (LSB) | ±0.25, ±0.25 |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 16-QFN (3x3) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology MCP48CVB11-E/MG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCP48CVB11-E/MG is a Digital-to-Analog Converter (DAC) manufactured by Microchip Technology (Microchip). Integrated Circuit Digital-To-Analog Converter 10bit in 16-Pin QFN Package, housed in a compact 16-QFN (3x3) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 16-VFQFN Exposed Pad
- Device Package: 16-QFN (3x3)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
