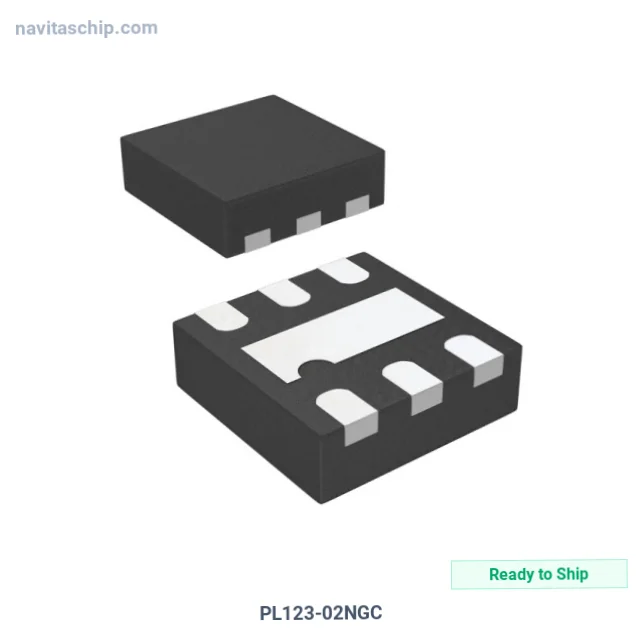

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PL123-02NGC |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-5049507 |
| Description | IC CLK BUFFER 1:2 200MHZ 6DFN |
| Spec | 6-UFDFN Exposed Pad |
| Package | Bag |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Microchip Technology |
| Package | Bag |
| Product Status | Last Time Buy |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 1:2 |
| Differential - Input | No/No |
| Input | LVCMOS |
| Output | LVCMOS |
| Frequency - Max | 200 MHz |
| Voltage - Supply | 1.62V ~ 3.63V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-DFN (2x1.3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology PL123-02NGC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PL123-02NGC is a Clock Buffer and Driver IC manufactured by Microchip Technology (Microchip). Integrated Circuit Clock Buffer 1:2 operating at 200MHz in 6-Pin DFN Package, housed in a compact 6-DFN (2x1.3) package, with 1.62V ~ 3.63V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.62V ~ 3.63V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 6-UFDFN Exposed Pad
- Device Package: 6-DFN (2x1.3)
- RoHS Compliant
Packaging: factory Bag or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
