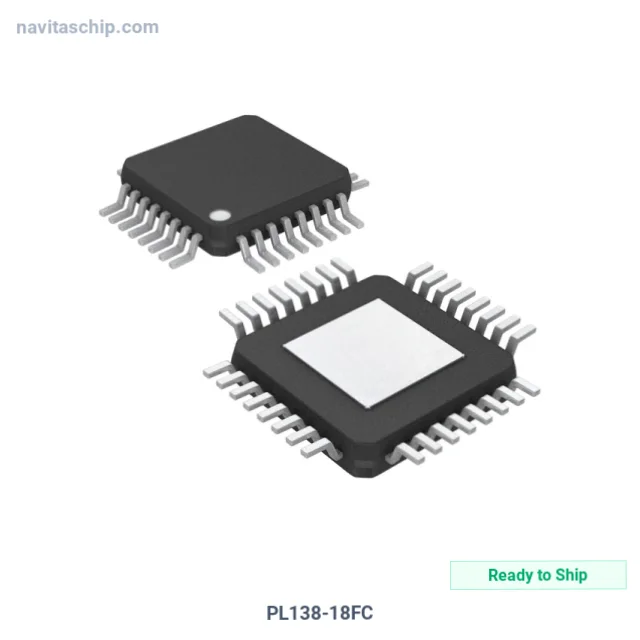

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PL138-18FC |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-5049444 |
| Description | IC CLK BUFFER 2:10 700MHZ 32LQFP |
| Spec | 32-LQFP Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 |
| Ratio - Input | 2:10 |
| Differential - Input | Yes/Yes |
| Input | CML, HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, SSTL |
| Output | LVPECL |
| Frequency - Max | 700 MHz |
| Voltage - Supply | 2.375V ~ 3.63V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-LQFP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology PL138-18FC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PL138-18FC is a Clock Buffer and Driver IC manufactured by Microchip Technology (Microchip). Integrated Circuit Clock Buffer 2:10 operating at 700MHz in 32-Pin LQFP Package, housed in a compact 32-LQFP (7x7) package, with 2.375V ~ 3.63V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 3.63V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 32-LQFP Exposed Pad
- Device Package: 32-LQFP (7x7)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
