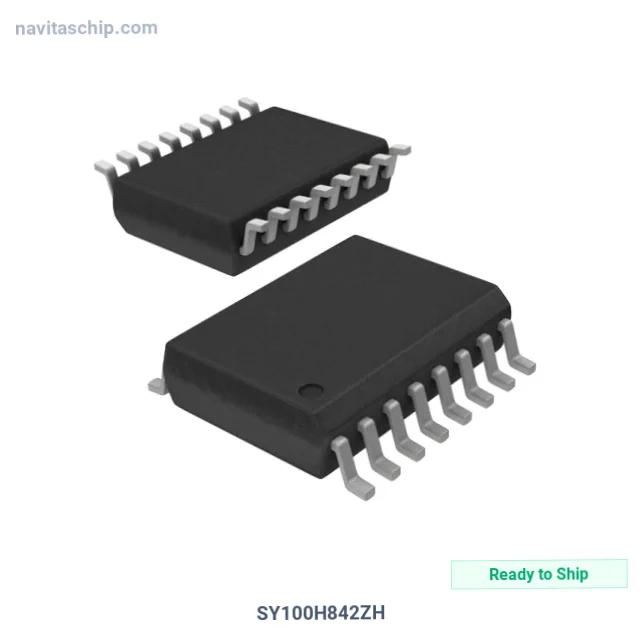

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SY100H842ZH |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-5702170 |
| Description | IC CLK BUFFER 1:4 160MHZ 16SOIC |
| Spec | 16-SOIC (0.295", 7.50mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Microchip Technology |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 1:4 |
| Differential - Input | Yes/Yes |
| Input | PECL |
| Output | TTL |
| Frequency - Max | 160 MHz |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology SY100H842ZH Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SY100H842ZH is a Clock Buffer and Driver IC manufactured by Microchip Technology (Microchip). Integrated Circuit Clock Buffer 1:4 operating at 160MHz in 16-Pin SOIC Package, housed in a compact 16-SOIC package, with 4.75V ~ 5.25V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V
- Operating Temperature: 0°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-SOIC (0.295", 7.50mm Width)
- Device Package: 16-SOIC
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
