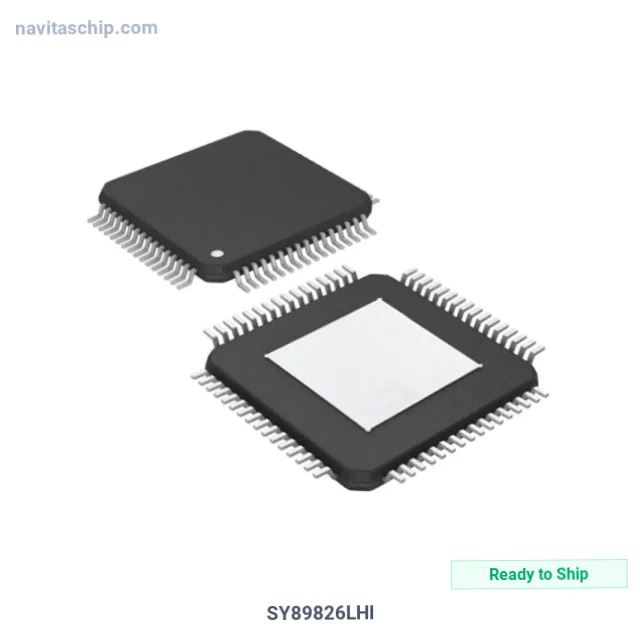

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SY89826LHI |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-1032858 |
| Description | IC CLK BUFFER 2:22 1GHZ 64TQFP |
| Spec | 64-TQFP Exposed Pad |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Microchip Technology |
| Package | Bulk |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer, Translator |
| Number of Circuits | 1 |
| Ratio - Input | 2:22 |
| Differential - Input | Yes/Yes |
| Input | LVDS, LVPECL |
| Output | LVDS |
| Frequency - Max | 1 GHz |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-TQFP-EP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology SY89826LHI Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SY89826LHI is a Clock Buffer and Driver IC manufactured by Microchip Technology (Microchip). Integrated Circuit Clock Buffer 2:22 operating at 1GHz in 64-Pin TQFP Package, housed in a compact 64-TQFP-EP (10x10) package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 64-TQFP Exposed Pad
- Device Package: 64-TQFP-EP (10x10)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
