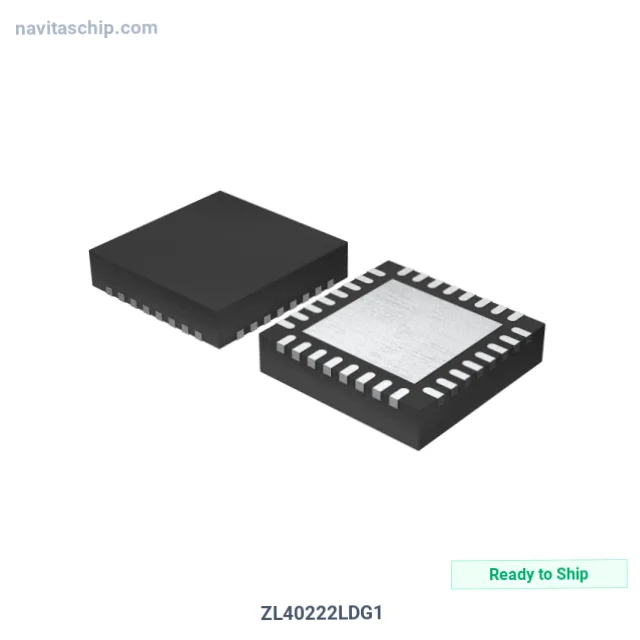

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ZL40222LDG1 |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-3906778 |
| Description | IC CLK BUFFER 2:8 750MHZ 32QFN |
| Spec | 32-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Active |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 |
| Ratio - Input | 2:8 |
| Differential - Input | Yes/Yes |
| Input | CML, HCSL, LVCMOS, LVDS, LVPECL |
| Output | LVDS |
| Frequency - Max | 750 MHz |
| Voltage - Supply | 2.375V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-QFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology ZL40222LDG1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ZL40222LDG1 is a Clock Buffer and Driver IC manufactured by Microchip Technology (Microchip). Integrated Circuit Clock Buffer 2:8 operating at 750MHz in 32-Pin QFN Package, housed in a compact 32-QFN (5x5) package, with 2.375V ~ 3.465V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 3.465V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 32-VFQFN Exposed Pad
- Device Package: 32-QFN (5x5)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
