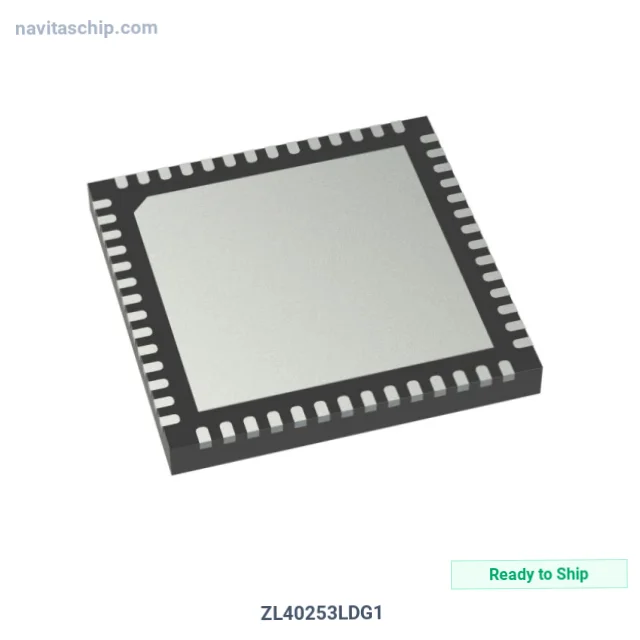

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ZL40253LDG1 |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-6594756 |
| Description | IC CLK BUF 4:10 1.035GHZ 56QFN |
| Spec | 56-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Microchip Technology |
| Package | Tray |
| Product Status | Active |
| Type | Fanout Buffer (Distribution), Divider, Multiplexer |
| Number of Circuits | 1 |
| Ratio - Input | 4:10 |
| Differential - Input | Yes/Yes |
| Input | CMOS, Crystal |
| Output | CML, CMOS, HCSL, HSTL, LVDS, LVPECL, SSTL |
| Frequency - Max | 1.035 GHz |
| Voltage - Supply | 1.71V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-QFN (8x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology ZL40253LDG1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ZL40253LDG1 is a Clock Buffer and Driver IC manufactured by Microchip Technology (Microchip). Integrated Circuit Clock Buffer 4:10 operating at 1.035GHz in 56-Pin QFN Package, housed in a compact 56-QFN (8x8) package, with 1.71V ~ 3.465V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.71V ~ 3.465V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 56-VFQFN Exposed Pad
- Device Package: 56-QFN (8x8)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
