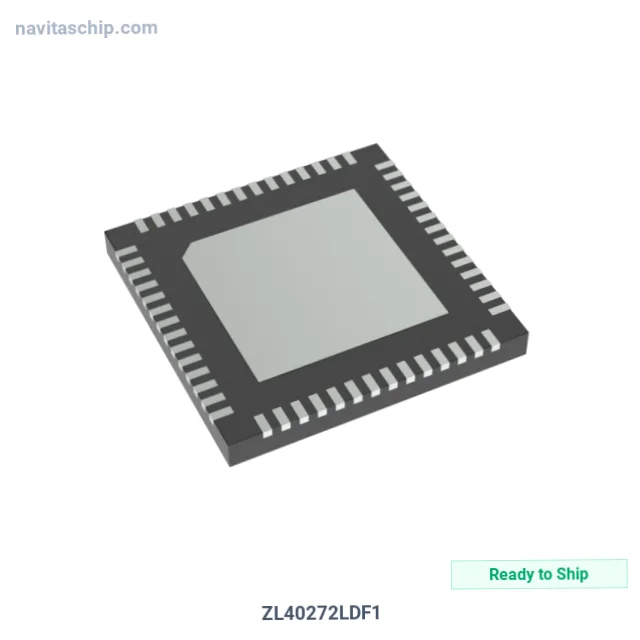

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ZL40272LDF1 |
| Manufacturer | Microchip Technology |
| NavitasChip Part Number | NAVI-24818419 |
| Description | ZL40272LDF1 12-OUTPUT PCIE HCSL |
| Spec | 56-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Microchip Technology |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 2:12 |
| Differential - Input | Yes/Yes |
| Input | CML, HCSL, LVCMOS, LVDS, LVPECL, SSTL |
| Output | CML, HCSL, LVCMOS, LVDS, LVPECL, SSTL |
| Frequency - Max | 1.5 GHz |
| Voltage - Supply | 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-QFN (8x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Microchip Technology ZL40272LDF1 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ZL40272LDF1 is an Integrated Circuit manufactured by Microchip Technology (Microchip). Zl40272ldf1 12-Output PCIe Hcsl, housed in a compact 56-QFN (8x8) package, with 2.375V ~ 2.625V, 3.135V ~ 3.465V supply voltage.
Facing annual BOM cost reduction pressure? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 2.625V, 3.135V ~ 3.465V
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 56-VFQFN Exposed Pad
- Device Package: 56-QFN (8x8)
- RoHS Compliant
Applications
Commonly utilized in:
- IoT devices
- industrial electronics
- communication equipment
Why Choose NavitasChip for ZL40272LDF1?
NavitasChip offers supply gap bridging when factory lead times exceed 50 weeks for the ZL40272LDF1 and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
