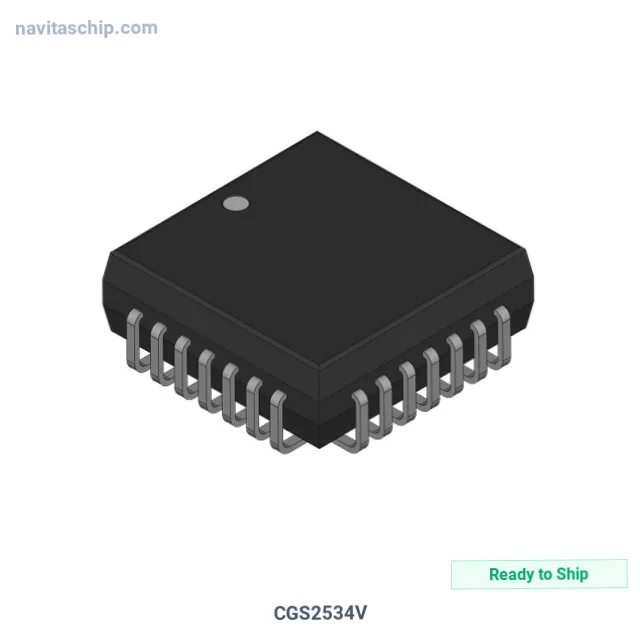

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CGS2534V |
| Manufacturer | National Semiconductor |
| NavitasChip Part Number | NAVI-12107133 |
| Description | IC CLOCK DRIVER 28PLCC |
| Spec | 28-LCC (J-Lead) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | National Semiconductor |
| Package | Bulk |
| Product Status | Active |
| Type | Clock Driver |
| Ratio - Input | 1:4 |
| Differential - Input | No/No |
| Input | TTL |
| Output | TTL |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-PLCC (11.43x11.43) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | National Semiconductor CGS2534V Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CGS2534V is a Clock Buffer and Driver IC manufactured by National Semiconductor (NSC). Integrated Circuit Clock Driver 28plcc, housed in a compact 28-PLCC (11.43x11.43) package, with 4.5V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 28-LCC (J-Lead)
- Device Package: 28-PLCC (11.43x11.43)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
