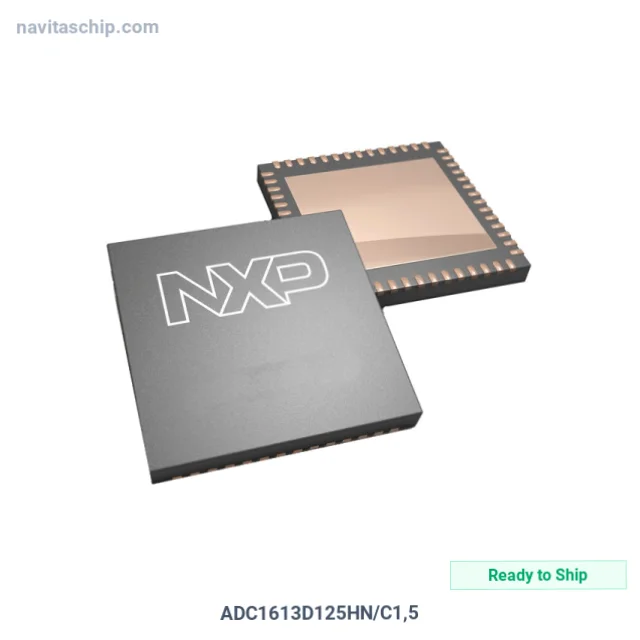

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADC1613D125HN/C1,5 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-2295314 |
| Description | IC ADC 16BIT PIPELINED 56HVQFN |
| Spec | 56-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 125M |
| Number of Inputs | 2 |
| Input Type | Differential, Single Ended |
| Data Interface | JESD204A |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 2 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.85V ~ 3.4V |
| Voltage - Supply, Digital | 1.65V ~ 1.95V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 56-HVQFN (8x8) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. ADC1613D125HN/C1,5 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADC1613D125HN/C1,5 is an Analog-to-Digital Converter (ADC) manufactured by NXP USA Inc. (NXP). Integrated Circuit Analog-To-Digital Converter 16bit Pipelined 56hvqfn, housed in a compact 56-HVQFN (8x8) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 56-VFQFN Exposed Pad
- Device Package: 56-HVQFN (8x8)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
