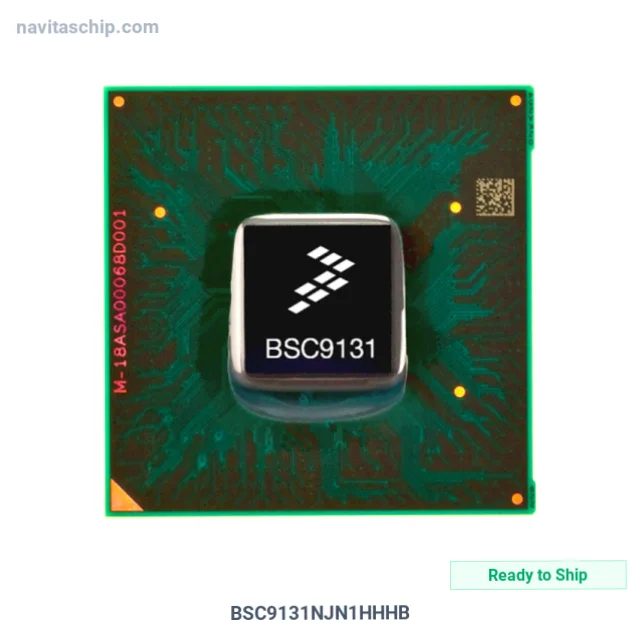

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | BSC9131NJN1HHHB |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-4234865 |
| Description | IC MPU QORIQ 800MHZ 520FCBGA |
| Spec | 520-FBGA, FCBGA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | NXP USA Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Core Processor | PowerPC e500 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 800MHz |
| Co-Processors/DSP | Signal Processing; SC3850 |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 (1) |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 520-FCBGA (21x21) |
| Additional Interfaces | AIC, DUART, I2C, MMC/SD, SPI, USIM |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. BSC9131NJN1HHHB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The BSC9131NJN1HHHB is an Embedded Processor manufactured by NXP USA Inc. (NXP). Integrated Circuit Microprocessor Qoriq operating at 800MHz in 520-Pin BGA Package, housed in a compact 520-FCBGA (21x21) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 520-FBGA, FCBGA
- Device Package: 520-FCBGA (21x21)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
