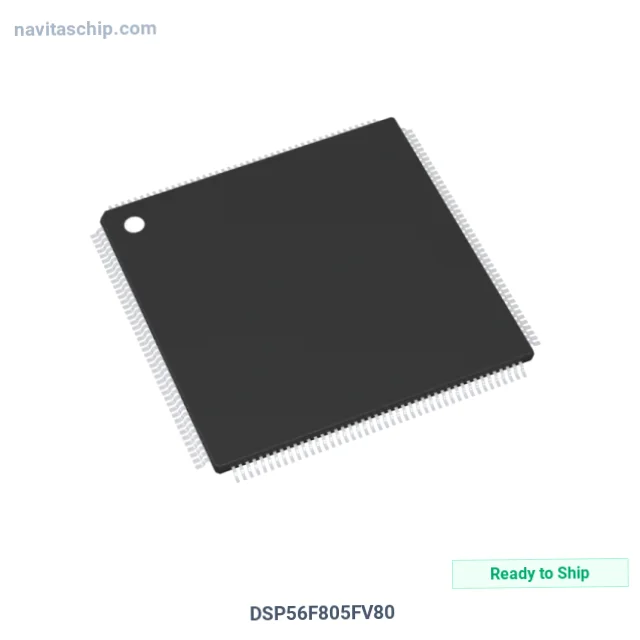

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DSP56F805FV80 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-410929 |
| Description | IC MCU 16BIT 64KB FLASH 144LQFP |
| Spec | 144-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | 56800 |
| Core Size | 16-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 32 |
| Program Memory Size | 64KB (32K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 2K x 16 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 8x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. DSP56F805FV80 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DSP56F805FV80 is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 16bit 64kb Flash Memory in 144-Pin LQFP Package, housed in a compact 144-LQFP (20x20) package. Originally developed by Maxim Integrated, this component continues to be fully supported.
