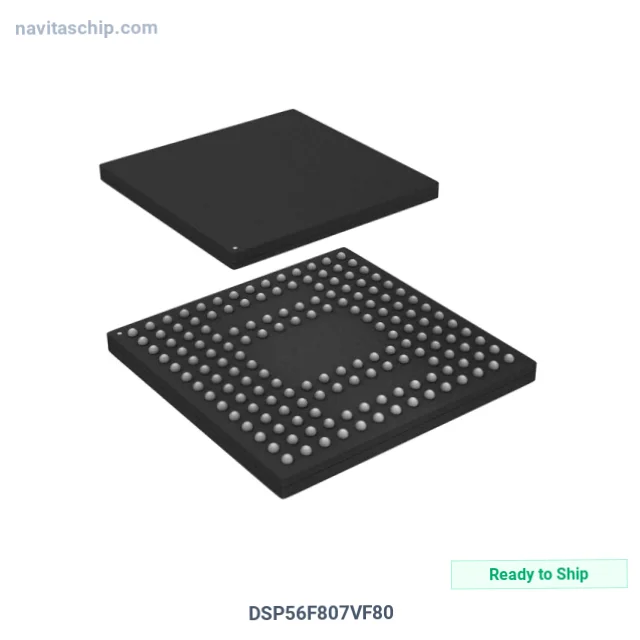

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DSP56F807VF80 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-413561 |
| Description | IC MCU 16B 120KB FLASH 160MAPBGA |
| Spec | 160-BGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | 56800 |
| Core Size | 16-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 32 |
| Program Memory Size | 120KB (60K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 4K x 16 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 160-MAPBGA (15x15) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. DSP56F807VF80 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DSP56F807VF80 is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 16b 120kb Flash Memory in 160-Pin BGA Package, housed in a compact 160-MAPBGA (15x15) package. Originally developed by Maxim Integrated, this component continues to be fully supported.
In today's market, microcontroller shortage can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 160-BGA
- Device Package: 160-MAPBGA (15x15)
Applications
Perfect for:
- embedded systems
- professional equipment
- smart home
Why Choose NavitasChip for DSP56F807VF80?
NavitasChip offers wholesale pricing advantages for the DSP56F807VF80 and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
As an independent distributor, we offer DSP56F807VF80 with flexible routing options.
DSP56F807VF80 - Inquire for bulk discount.
