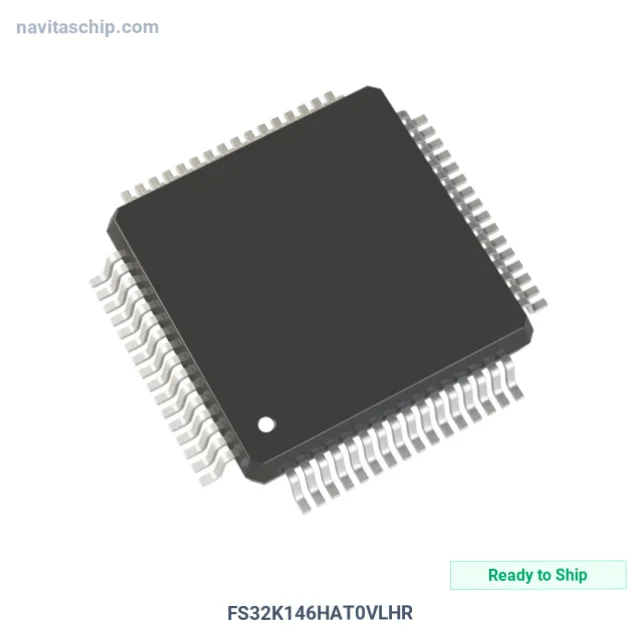

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | FS32K146HAT0VLHR |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | N96110500 |
| Description | IC MCU 32BIT 1MB FLASH 64LQFP |
| Spec | 64-LQFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, FlexIO, I2C, LINbus, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 58 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 24x12b SAR; D/A1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. FS32K146HAT0VLHR Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The FS32K146HAT0VLHR is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 32bit 1mb Flash Memory in 64-Pin LQFP Package, housed in a compact 64-LQFP (10x10) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 64-LQFP
- Device Package: 64-LQFP (10x10)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
