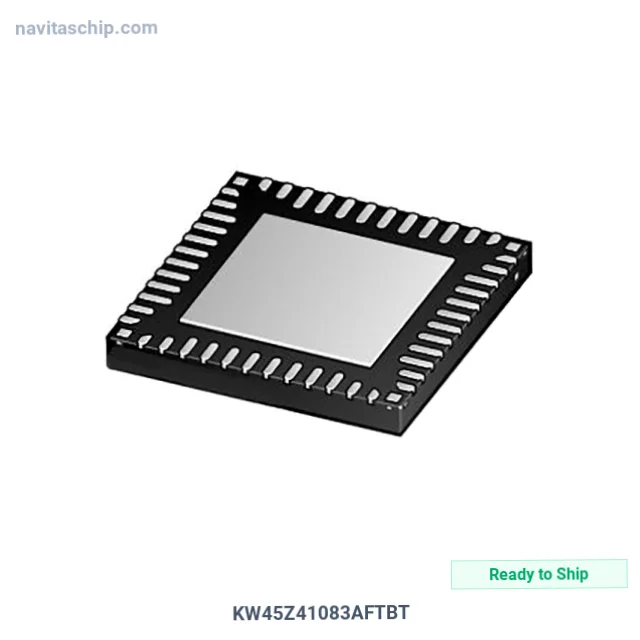

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | KW45Z41083AFTBT |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | N96108734 |
| Description | K4W1 HVQFN48 |
| Spec | 48-VFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 96MHz |
| Connectivity | CANbus, HMI, I2C, SPI, UART/USART |
| Peripherals | DMA, PWM, WDT |
| Number of I/O | 29 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 14x16b SAR |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 48-HVQFN (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. KW45Z41083AFTBT Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The KW45Z41083AFTBT is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). K4w1 Hvqfn48, housed in a compact 48-HVQFN (7x7) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount, Wettable Flank
- Package: 48-VFQFN Exposed Pad
- Device Package: 48-HVQFN (7x7)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
