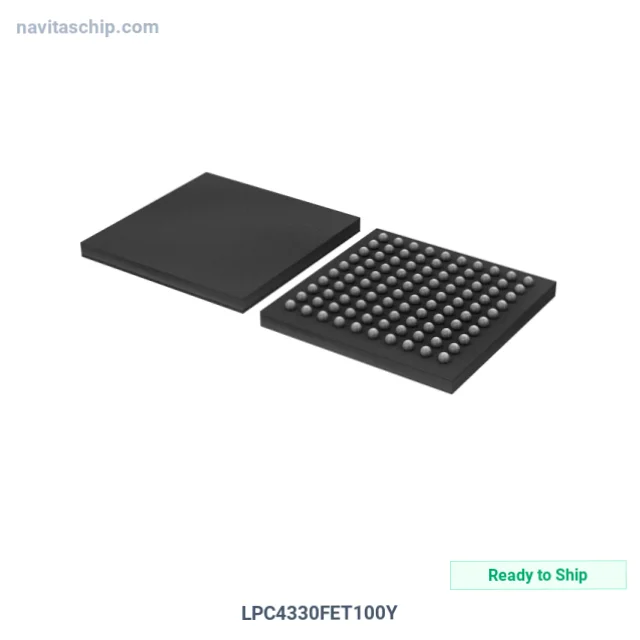

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LPC4330FET100Y |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | N96111215 |
| Description | IC MCU 32BIT ROMLESS 100TFBGA |
| Spec | 100-TFBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M4/M0 |
| Core Size | 32-Bit Dual-Core |
| Speed | 204MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 49 |
| Program Memory Type | ROMless |
| RAM Size | 264K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V |
| Data Converters | A/D 4x10b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (9x9) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. LPC4330FET100Y Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The LPC4330FET100Y is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 32bit Romless in 100-Pin BGA Package, housed in a compact 100-TFBGA (9x9) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 100-TFBGA
- Device Package: 100-TFBGA (9x9)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
