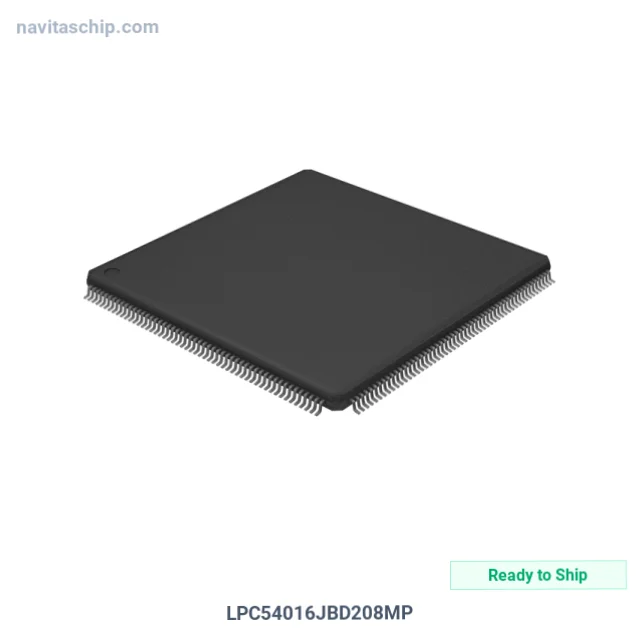

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LPC54016JBD208MP |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | N96110889 |
| Description | LPC54016JBD208 |
| Spec | 208-LQFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SmartCard, SPI, SPIFI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, SHA, Temp Sensor, TRNG, WDT |
| Number of I/O | 171 |
| Program Memory Type | ROMless |
| RAM Size | 360K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-LQFP (28x28) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. LPC54016JBD208MP Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The LPC54016JBD208MP is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Lpc54016jbd208, housed in a compact 208-LQFP (28x28) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 208-LQFP
- Device Package: 208-LQFP (28x28)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
