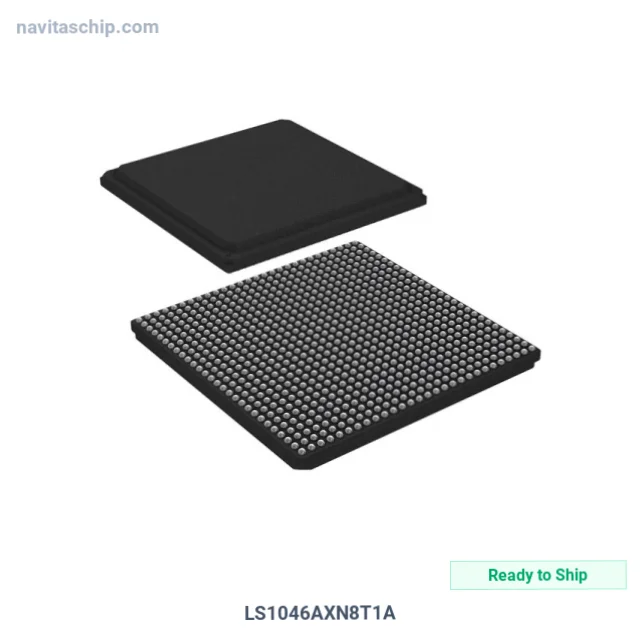

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LS1046AXN8T1A |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-7645814 |
| Description | IC MPU QORIQ 1.8GHZ 780FCPBGA |
| Spec | 780-FBGA, FCBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-A72 |
| Number of Cores/Bus Width | 4 Core, 64-Bit |
| Speed | 1.8GHz |
| RAM Controllers | DDR4 |
| Ethernet | 10GbE (2), 2.5GbE (1), 1GbE (4) |
| SATA | SATA 6Gbps (1) |
| USB | USB 3.0 (3) + PHY |
| Operating Temperature | -40°C ~ 105°C |
| Security Features | Secure Boot, TrustZone® |
| Mounting Type | Surface Mount |
| Supplier Device Package | 780-FCPBGA (23x23) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. LS1046AXN8T1A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LS1046AXN8T1A is an Embedded Processor manufactured by NXP USA Inc. (NXP). Integrated Circuit Microprocessor Qoriq operating at 1.8GHz in 780-Pin BGA Package, housed in a compact 780-FCPBGA (23x23) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 780-FBGA, FCBGA
- Device Package: 780-FCPBGA (23x23)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
