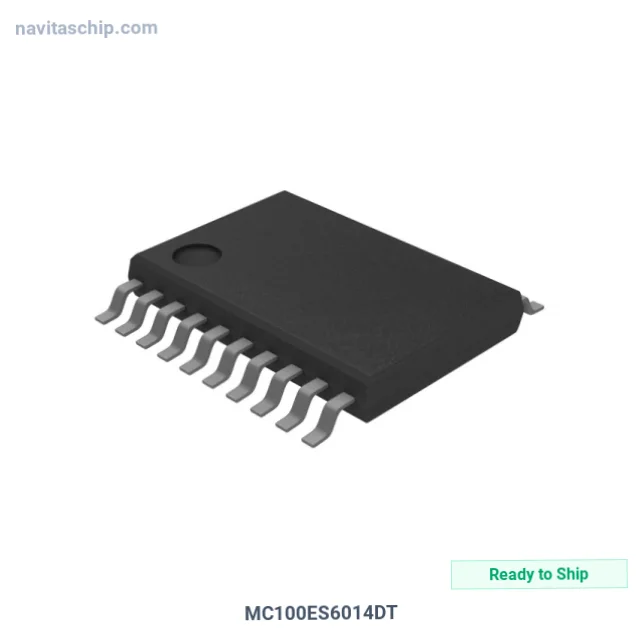

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC100ES6014DT |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-703624 |
| Description | IC CLK BUFFER 2:5 2GHZ 20TSSOP |
| Spec | 20-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | NXP USA Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 |
| Ratio - Input | 2:5 |
| Differential - Input | Yes/Yes |
| Input | ECL, HSTL, PECL |
| Output | ECL, PECL |
| Frequency - Max | 2 GHz |
| Voltage - Supply | 2.375V ~ 3.8V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MC100ES6014DT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC100ES6014DT is a Clock Buffer and Driver IC manufactured by NXP USA Inc. (NXP). Integrated Circuit Clock Buffer 2:5 operating at 2GHz in 20-Pin TSSOP Package, housed in a compact 20-TSSOP package, with 2.375V ~ 3.8V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 3.8V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-TSSOP (0.173", 4.40mm Width)
- Device Package: 20-TSSOP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
