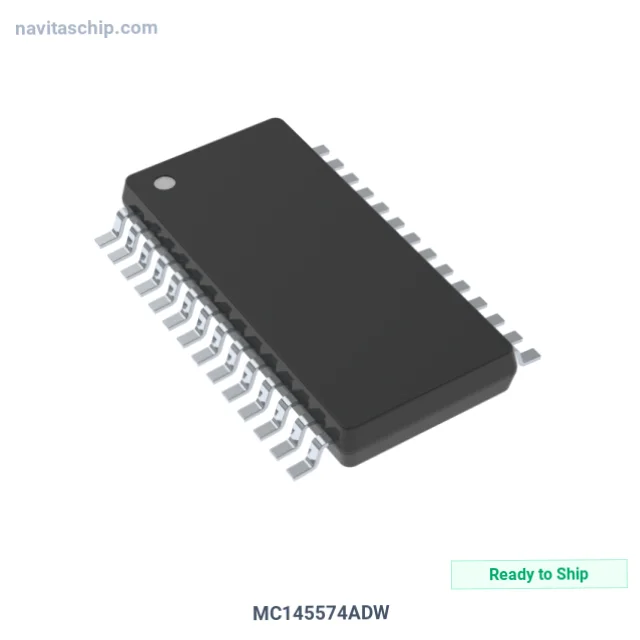

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC145574ADW |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-464032 |
| Description | IC TRANSCEIVER 28SOIC |
| Spec | 28-SOIC (0.295", 7.50mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | NXP USA Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Type | Transceiver |
| Voltage - Supply | 4.75V ~ 5.25V |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MC145574ADW Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC145574ADW is an Interface Driver Receiver Transceiver IC manufactured by NXP USA Inc. (NXP). Integrated Circuit Transceiver in 28-Pin SOIC Package, housed in a compact 28-SOIC package, with 4.75V ~ 5.25V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V
- Mounting: Surface Mount
- Package: 28-SOIC (0.295", 7.50mm Width)
- Device Package: 28-SOIC
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
