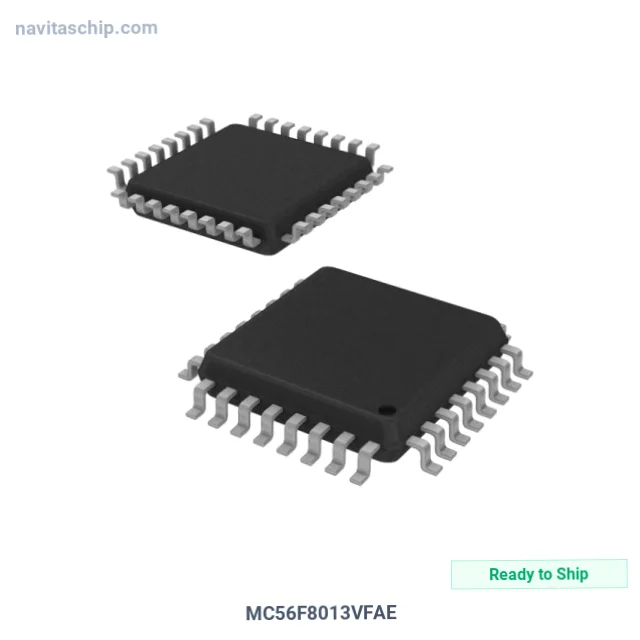

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC56F8013VFAE |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-1167271 |
| Description | IC MCU 16BIT 16KB FLASH 32LQFP |
| Spec | 32-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | 56800E |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | I2C, SCI, SPI |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 26 |
| Program Memory Size | 16KB (8K x 16) |
| Program Memory Type | FLASH |
| RAM Size | 2K x 16 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 6x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-LQFP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MC56F8013VFAE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC56F8013VFAE is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 16bit 16kb Flash Memory in 32-Pin LQFP Package, housed in a compact 32-LQFP (7x7) package. Extended temperature range version (-40°C to +85°C).
