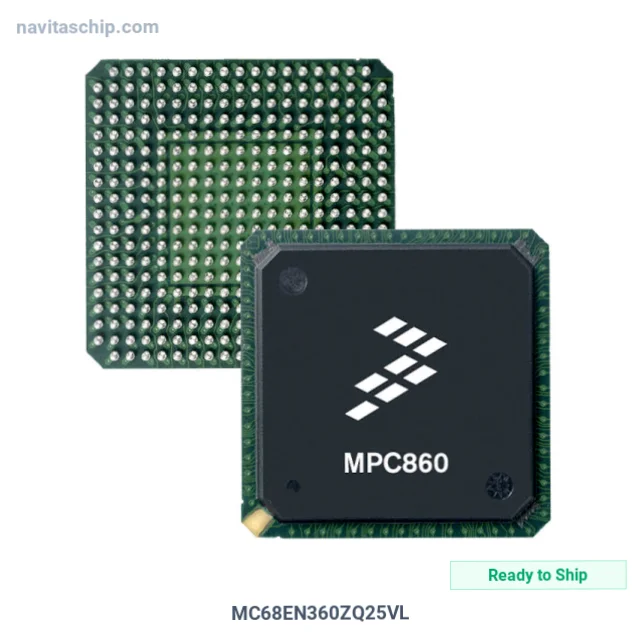

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC68EN360ZQ25VL |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-1619596 |
| Description | IC MPU M683XX 25MHZ 357BGA |
| Spec | 357-BBGA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | NXP USA Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Core Processor | CPU32+ |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 25MHz |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Ethernet | 10Mbps (1) |
| Voltage - I/O | 3.3V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 357-PBGA (25x25) |
| Additional Interfaces | SCC, SMC, SPI |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MC68EN360ZQ25VL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC68EN360ZQ25VL is an Embedded Processor manufactured by NXP USA Inc. (NXP). Integrated Circuit Microprocessor M683xx operating at 25MHz in 357-Pin BGA Package, housed in a compact 357-PBGA (25x25) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 357-BBGA
- Device Package: 357-PBGA (25x25)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
