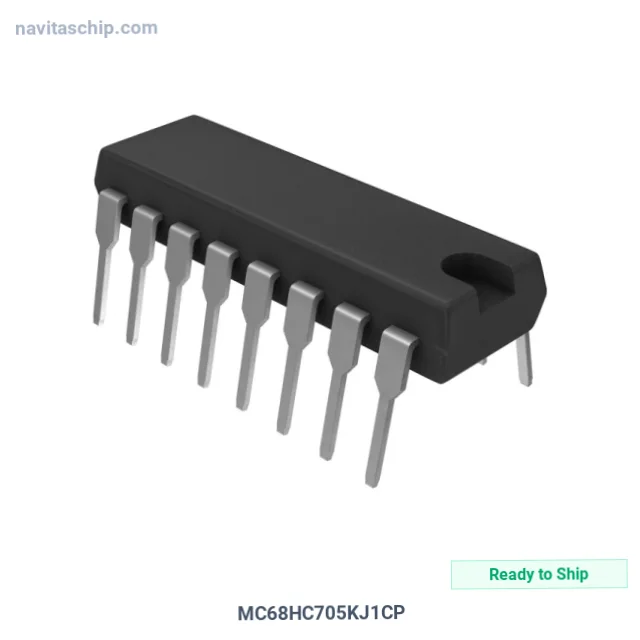

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC68HC705KJ1CP |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-389324 |
| Description | IC MCU 8BIT 1.2KB OTP 16DIP |
| Spec | 16-DIP (0.300\ |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Core Processor | HC05 |
| Core Size | 8-Bit |
| Speed | 4MHz |
| Peripherals | POR, WDT |
| Number of I/O | 10 |
| Program Memory Size | 1.2KB (1.2K x 8) |
| Program Memory Type | OTP |
| RAM Size | 64 x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MC68HC705KJ1CP Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC68HC705KJ1CP is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 8bit 1.2kb Overtemperature Protection in 16-Pin DIP Package, housed in a compact 16-PDIP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Through Hole
- Package: 16-DIP (0.300\
- Device Package: 16-PDIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
