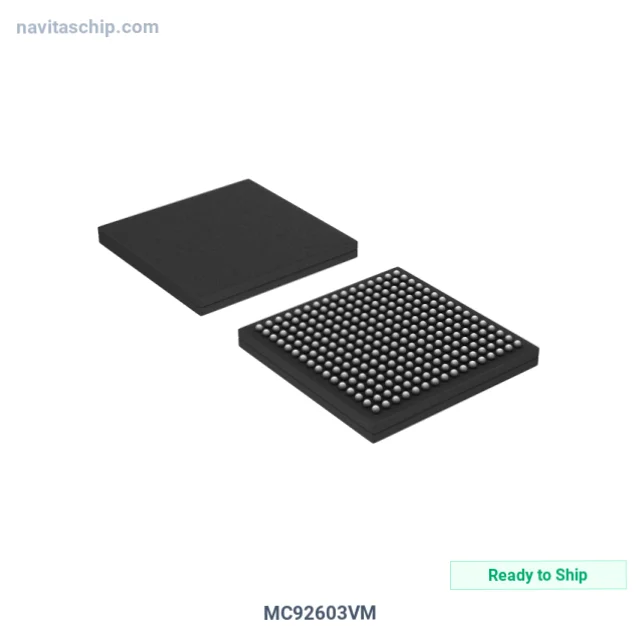

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC92603VM |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-954695 |
| Description | IC TXRX FULL 4/4 256MAPBGA |
| Spec | 256-LBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Type | Transceiver |
| Protocol | Gigabit Ethernet |
| Number of Drivers/Receivers | 4/4 |
| Duplex | Full |
| Data Rate | 1Gbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Surface Mount |
| Supplier Device Package | 256-MAPBGA (17x17) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MC92603VM Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC92603VM is an Interface Driver Receiver Transceiver IC manufactured by NXP USA Inc. (NXP). Integrated Circuit Transceiver Full 4/4 in 256-Pin BGA Package, housed in a compact 256-MAPBGA (17x17) package, with 4.5V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Mounting: Surface Mount
- Package: 256-LBGA
- Device Package: 256-MAPBGA (17x17)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
