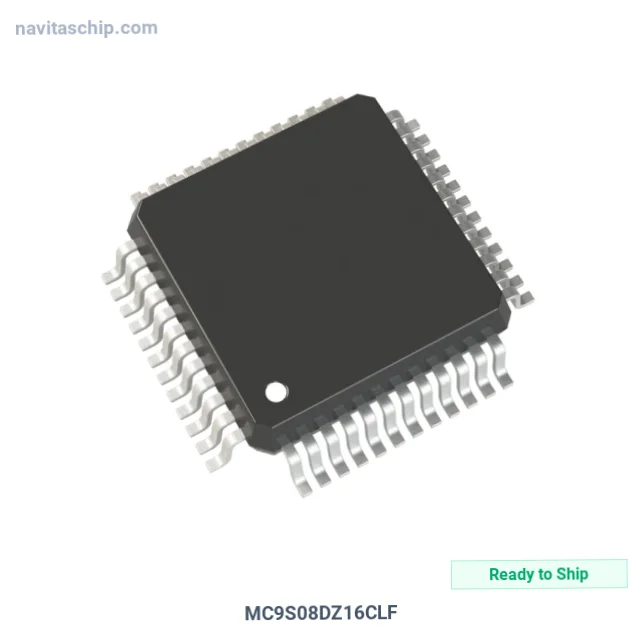

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC9S08DZ16CLF |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-1679253 |
| Description | IC MCU 8BIT 16KB FLASH 48LQFP |
| Spec | 48-LQFP |
| Package | Tray |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 39 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LQFP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC9S08DZ16CLF is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 8bit 16kb Flash Memory in 48-Pin LQFP Package, housed in a compact 48-LQFP (7x7) package. Lead-Free version available.
Struggling with EOL (End of Life) notices? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 48-LQFP
- Device Package: 48-LQFP (7x7)
- RoHS Compliant
Applications
Essential component for:
- consumer electronics
- professional equipment
- wearable devices
Why Choose NavitasChip for MC9S08DZ16CLF?
NavitasChip offers supply gap bridging when factory lead times exceed 50 weeks for the MC9S08DZ16CLF and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Ships from Hong Kong, Singapore, or Shenzhen based on destination requirements.
MC9S08DZ16CLF - Contact our sales team.
