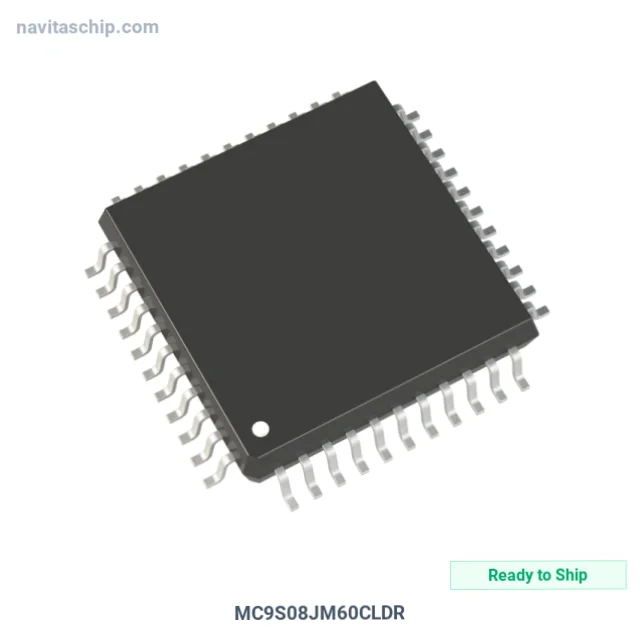

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC9S08JM60CLDR |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | N96110834 |
| Description | IC MCU 8BIT 60KB FLASH 44LQFP |
| Spec | 44-LQFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 48MHz |
| Connectivity | I2C, LINbus, SCI, SPI, USB |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 33 |
| Program Memory Size | 60KB (60K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 8x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-LQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MC9S08JM60CLDR Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The MC9S08JM60CLDR is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 8bit 60kb Flash Memory in 44-Pin LQFP Package, housed in a compact 44-LQFP (10x10) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 44-LQFP
- Device Package: 44-LQFP (10x10)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
