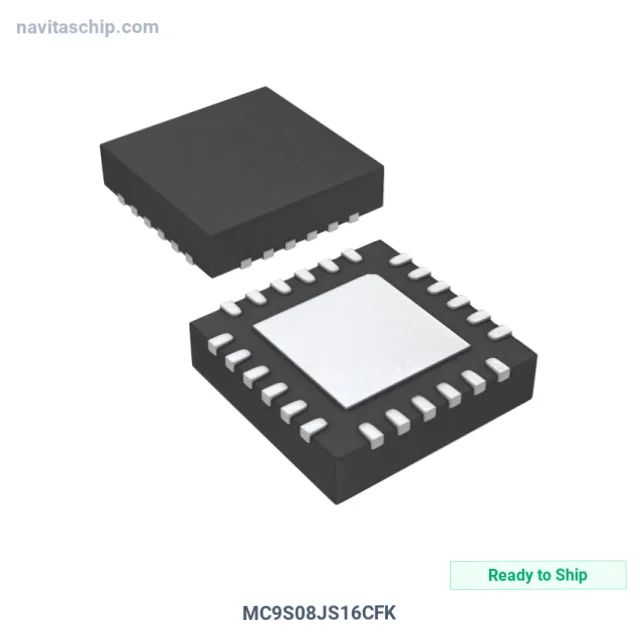

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC9S08JS16CFK |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-2041905 |
| Description | IC MCU 8BIT 16KB FLASH 24QFN |
| Spec | 24-VQFN Exposed Pad |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Bulk |
| Product Status | Not For New Designs |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 48MHz |
| Connectivity | LINbus, SCI, SPI, USB |
| Peripherals | LVD, POR, PWM |
| Number of I/O | 14 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-HVQFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MC9S08JS16CFK Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC9S08JS16CFK is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 8bit 16kb Flash Memory in 24-Pin QFN Package, housed in a compact 24-HVQFN (5x5) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 24-VQFN Exposed Pad
- Device Package: 24-HVQFN (5x5)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
