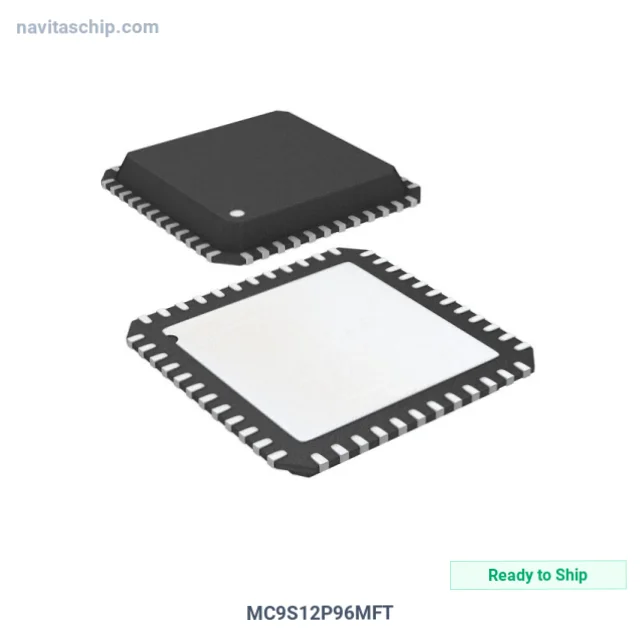

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MC9S12P96MFT |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | N96109863 |
| Description | IC MCU 16BIT 96KB FLASH 48QFN |
| Spec | 48-TFQFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | HCS12 |
| Core Size | 16-Bit |
| Speed | 32MHz |
| Connectivity | CANbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 34 |
| Program Memory Size | 96KB (96K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 5.5V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MC9S12P96MFT Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The MC9S12P96MFT is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 16bit 96kb Flash Memory in 48-Pin QFN Package, housed in a compact 48-QFN-EP (7x7) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 48-TFQFN Exposed Pad
- Device Package: 48-QFN-EP (7x7)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
