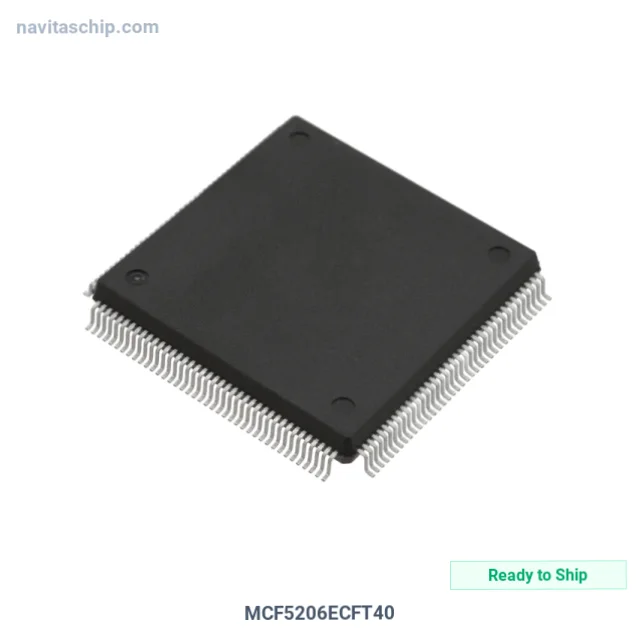

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCF5206ECFT40 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-643169 |
| Description | IC MPU MCF520X 40MHZ 160QFP |
| Spec | 160-BQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | Coldfire V2 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 40MHz |
| RAM Controllers | DRAM |
| Voltage - I/O | 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 160-QFP (28x28) |
| Additional Interfaces | EBI/EMI, I2C, UART/USART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MCF5206ECFT40 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCF5206ECFT40 is an Embedded Processor manufactured by NXP USA Inc. (NXP). Integrated Circuit Microprocessor Mcf520x operating at 40MHz in 160-Pin QFP Package, housed in a compact 160-QFP (28x28) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 160-BQFP
- Device Package: 160-QFP (28x28)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
