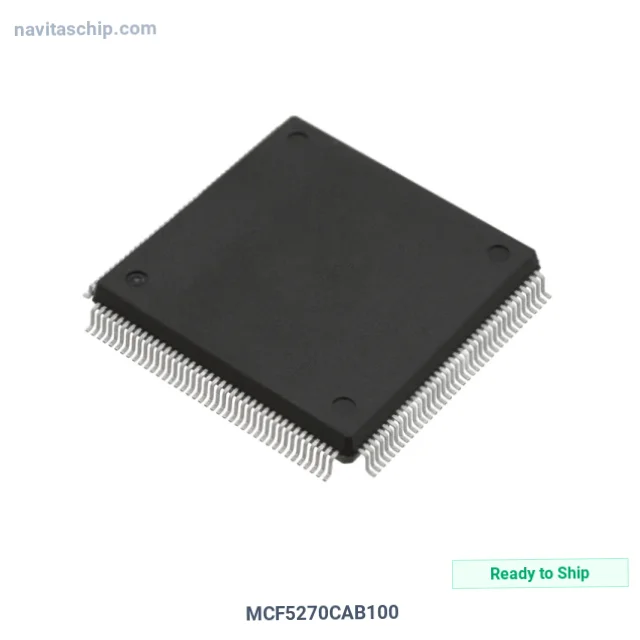

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCF5270CAB100 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-13167855 |
| Description | IC MCU 32BIT ROMLESS 160QFP |
| Spec | 160-BQFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Core Processor | Coldfire V2 |
| Core Size | 32-Bit |
| Speed | 100MHz |
| Connectivity | EBI/EMI, Ethernet, I2C, SPI, UART/USART |
| Peripherals | DMA, WDT |
| Number of I/O | 39 |
| Program Memory Type | ROMless |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.4V ~ 1.6V |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 160-QFP (28x28) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MCF5270CAB100 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCF5270CAB100 is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 32bit Romless in 160-Pin QFP Package, housed in a compact 160-QFP (28x28) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 160-BQFP
- Device Package: 160-QFP (28x28)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
