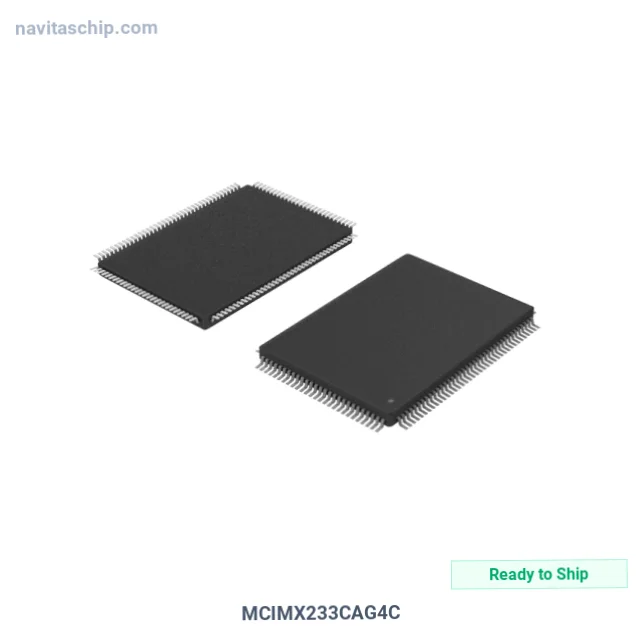

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCIMX233CAG4C |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-2660592 |
| Description | IC MPU I.MX23 454MHZ 128LQFP |
| Spec | 128-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM926EJ-S |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 454MHz |
| Co-Processors/DSP | Data; DCP |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, Touchscreen |
| USB | USB 2.0 + PHY (1) |
| Voltage - I/O | 2.0V, 2.5V, 2.7V, 3.0V, 3.3V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Security Features | Cryptography, Hardware ID |
| Mounting Type | Surface Mount |
| Supplier Device Package | 128-LQFP (14x14) |
| Additional Interfaces | I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, SSP, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MCIMX233CAG4C Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCIMX233CAG4C is an Embedded Processor manufactured by NXP USA Inc. (NXP). Integrated Circuit Microprocessor I.mx23 operating at 454MHz in 128-Pin LQFP Package, housed in a compact 128-LQFP (14x14) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 128-LQFP
- Device Package: 128-LQFP (14x14)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
