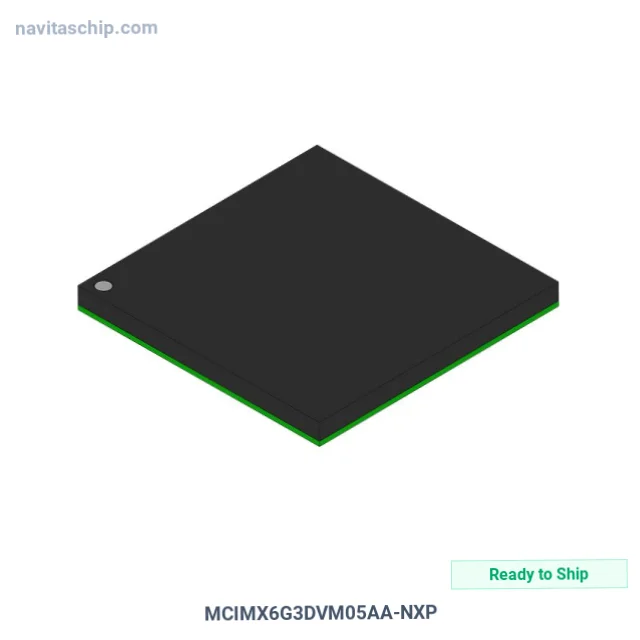

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCIMX6G3DVM05AA-NXP |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-12643021 |
| Description | IC MPU I.MX6 528MHZ 289MAPBGA |
| Spec | 289-LFBGA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | NXP USA Inc. |
| Package | Bulk |
| Product Status | Active |
| Core Processor | ARM® Cortex®-A7 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 528MHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, LVDS |
| Ethernet | 10/100Mbps (1) |
| USB | USB 2.0 + PHY (1) |
| Voltage - I/O | 1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Security Features | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS |
| Mounting Type | Surface Mount |
| Supplier Device Package | 289-MAPBGA (14x14) |
| Additional Interfaces | CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SAI, SPI, SSI, S/PDIF, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MCIMX6G3DVM05AA-NXP Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCIMX6G3DVM05AA-NXP is an Embedded Processor manufactured by NXP USA Inc. (NXP). Integrated Circuit Microprocessor I.mx6 operating at 528MHz in 289-Pin BGA Package, housed in a compact 289-MAPBGA (14x14) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 95°C (TJ)
- Mounting: Surface Mount
- Package: 289-LFBGA
- Device Package: 289-MAPBGA (14x14)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
