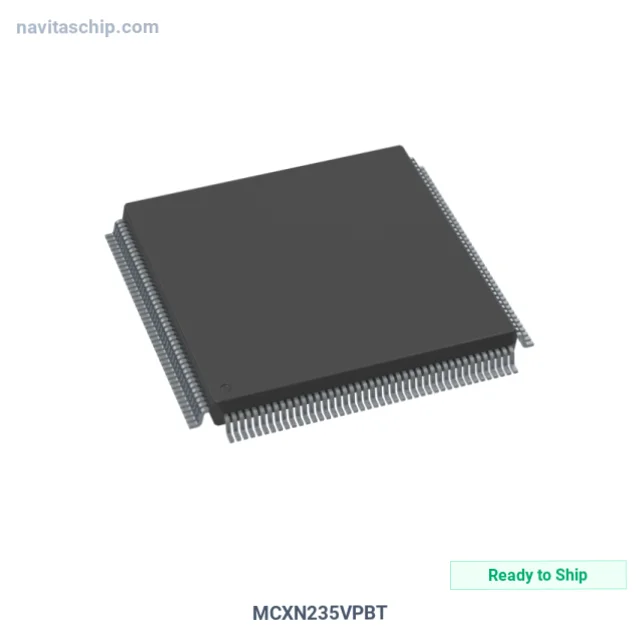

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCXN235VPBT |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | N96110897 |
| Description | MCXN11 172HDQFP |
| Spec | 172-QFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M33F |
| Core Size | 32-Bit |
| Speed | 150MHz |
| Connectivity | CANbus, Flexcomm, I2C, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, RNG, WDT |
| Number of I/O | 103 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 59x16b; D/A 1x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 172-QFP (16x16) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MCXN235VPBT Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The MCXN235VPBT is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Mcxn11 172hdqfp, housed in a compact 172-QFP (16x16) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 172-QFP
- Device Package: 172-QFP (16x16)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
