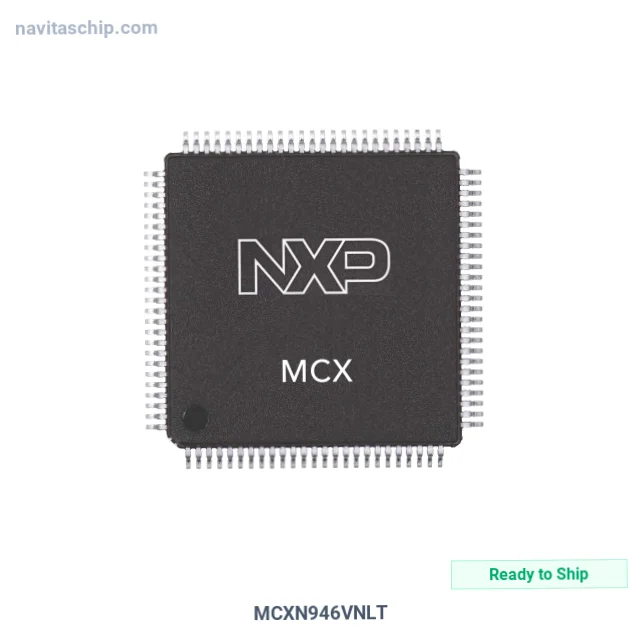

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MCXN946VNLT |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-22038020 |
| Description | IC MCX N94 150MHZ DUAL CORE NPU |
| Spec | 100-LQFP Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Discontinued at |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit Dual-Core |
| Speed | 150MHz |
| Connectivity | CAN, Ethernet, Flexcomm, FlexSPI, I3C, SAI, SCI, USB |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 78 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| RAM Size | 352K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 2x16b; D/A 2x12b, 1x14b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-HLQFP (14x14) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MCXN946VNLT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MCXN946VNLT is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Mcx N94 operating at 150MHz Dual Core Npu, housed in a compact 100-HLQFP (14x14) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 100-LQFP Exposed Pad
- Device Package: 100-HLQFP (14x14)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
