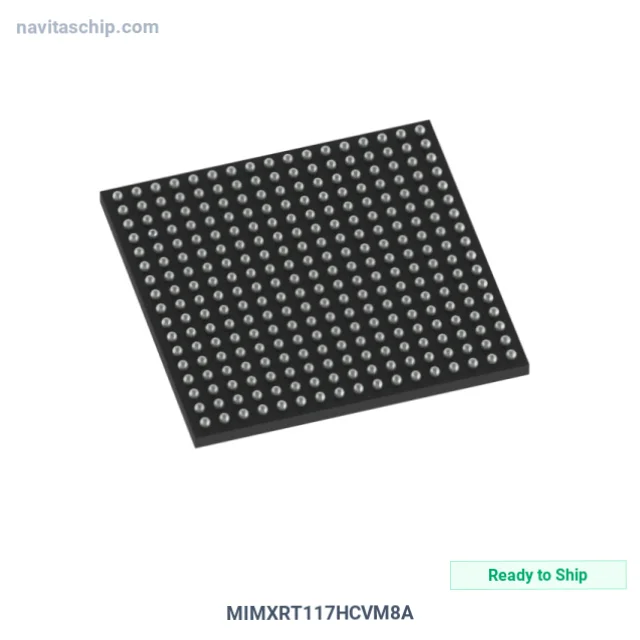

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MIMXRT117HCVM8A |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-16983105 |
| Description | IC MCU 32BIT EXT MEM 289LFBGA |
| Spec | 289-LFBGA |
| Package | Tray |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Not For New Designs |
| Core Processor | ARM® Cortex®-M4, Cortex®-M7 |
| Core Size | 32-Bit Dual-Core |
| Speed | 400MHz, 800MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 13 |
| Program Memory Type | External Program Memory |
| RAM Size | 2M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 1.95V, 3V ~ 3.6V |
| Data Converters | A/D 20x12b SAR; D/A 1x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 289-LFBGA (14x14) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MIMXRT117HCVM8A is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 32bit Ext Memory in 289-Pin BGA Package, housed in a compact 289-LFBGA (14x14) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 289-LFBGA
- Device Package: 289-LFBGA (14x14)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
