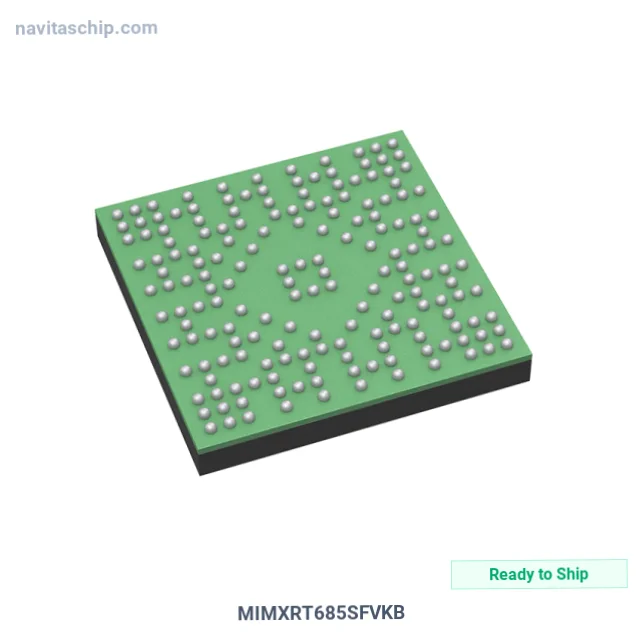

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MIMXRT685SFVKB |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-11624631 |
| Description | IC MCU 32BIT EXT MEM 176VFBGA |
| Spec | 176-VFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit Dual-Core |
| Speed | 300MHz |
| Connectivity | EBI/EMI, I2C, MMC/SD/SDIO, SPDIF, SPI, UART/USART, USB2.0 OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 96 |
| Program Memory Type | External Program Memory |
| RAM Size | 4.5M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-VFBGA (9x9) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MIMXRT685SFVKB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MIMXRT685SFVKB is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 32bit Ext Memory in 176-Pin BGA Package, housed in a compact 176-VFBGA (9x9) package.
Key Technical Specifications
- Operating Temperature: -20°C ~ 70°C (TA)
- Mounting: Surface Mount
- Package: 176-VFBGA
- Device Package: 176-VFBGA (9x9)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
