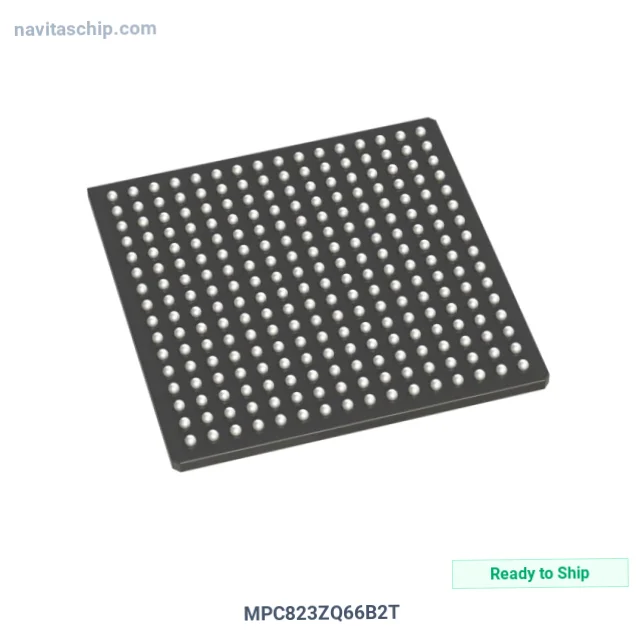

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MPC823ZQ66B2T |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-1168120 |
| Description | IC MPU MPC8XX 66MHZ 256BGA |
| Spec | 256-BBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | PowerPC |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 66MHz |
| Co-Processors/DSP | Communications; RISC CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD, Video |
| Ethernet | 10Mbps (1) |
| USB | USB 1.x (1) |
| Voltage - I/O | 3.3V |
| Operating Temperature | 0°C ~ 95°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 256-PBGA (23x23) |
| Additional Interfaces | I2C, SMC, SCC, SPI, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MPC823ZQ66B2T Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MPC823ZQ66B2T is an Embedded Processor manufactured by NXP USA Inc. (NXP). Integrated Circuit Microprocessor Mpc8xx operating at 66MHz in 256-Pin BGA Package, housed in a compact 256-PBGA (23x23) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 95°C (TA)
- Mounting: Surface Mount
- Package: 256-BBGA
- Device Package: 256-PBGA (23x23)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
