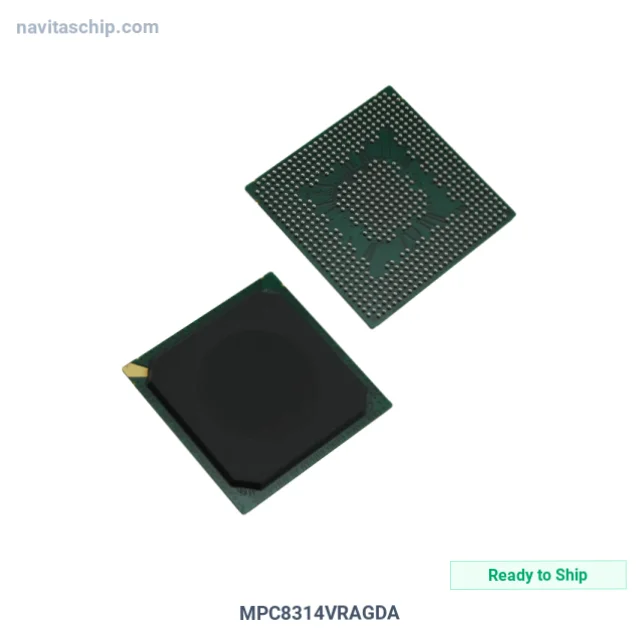

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MPC8314VRAGDA |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-2186254 |
| Description | IC MPU MPC83XX 400MHZ 620HBGA |
| Spec | 620-BBGA Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | PowerPC e300c3 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 400MHz |
| RAM Controllers | DDR, DDR2 |
| Graphics Acceleration | No |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1) |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 620-HBGA (29x29) |
| Additional Interfaces | DUART, HSSI, I2C, PCI, SPI, TDM |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MPC8314VRAGDA Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MPC8314VRAGDA is an Embedded Processor manufactured by NXP USA Inc. (NXP). Integrated Circuit Microprocessor Mpc83xx operating at 400MHz in 620-Pin BGA Package, housed in a compact 620-HBGA (29x29) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 620-BBGA Exposed Pad
- Device Package: 620-HBGA (29x29)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
