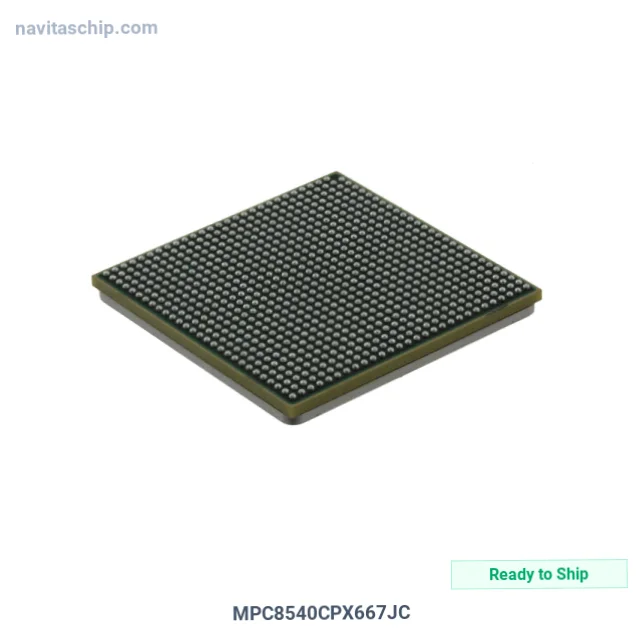

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MPC8540CPX667JC |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-2817492 |
| Description | IC MPU MPC85XX 667MHZ 783FCPBGA |
| Spec | 783-BFBGA, FCBGA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | NXP USA Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Core Processor | PowerPC e500 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 667MHz |
| RAM Controllers | DDR, SDRAM |
| Graphics Acceleration | No |
| Ethernet | 10/100Mbps (1), 10/100/1000Mbps (2) |
| Voltage - I/O | 2.5V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 783-FCPBGA (29x29) |
| Additional Interfaces | DUART, I2C, PCI, RapidIO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MPC8540CPX667JC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MPC8540CPX667JC is an Embedded Processor manufactured by NXP USA Inc. (NXP). Integrated Circuit Microprocessor Mpc85xx operating at 667MHz in 783-Pin BGA Package, housed in a compact 783-FCPBGA (29x29) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 783-BFBGA, FCBGA
- Device Package: 783-FCPBGA (29x29)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
