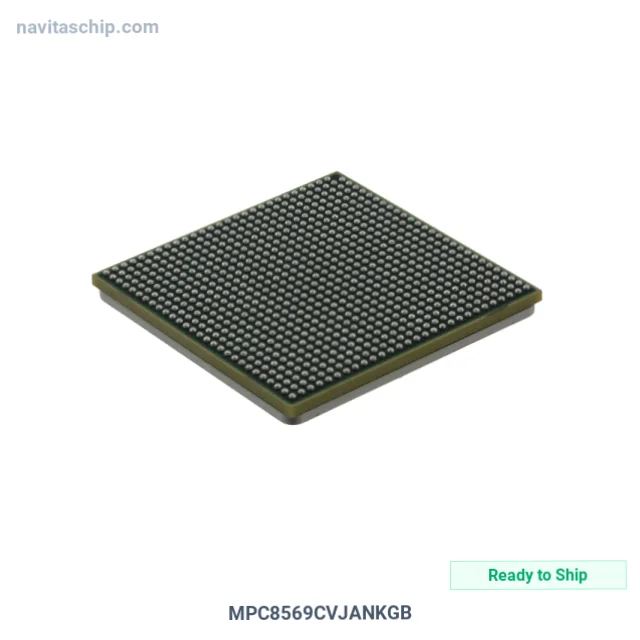

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | MPC8569CVJANKGB |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-13474452 |
| Description | IC MPU MPC85XX 800MHZ 783FCPBGA |
| Spec | 783-BBGA, FCBGA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | NXP USA Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Core Processor | PowerPC e500v2 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 800MHz |
| Co-Processors/DSP | Communications; QUICC Engine |
| RAM Controllers | DDR2, DDR3, SDRAM |
| Graphics Acceleration | No |
| Ethernet | 10/100Mbps (8), 1Gbps (4) |
| USB | USB 2.0 (1) |
| Voltage - I/O | 1.0V, 1.5V, 1.8V, 2.5V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 783-FCPBGA (29x29) |
| Additional Interfaces | DUART, HSSI, I2C, MMC/SD, PCI, RapidIO, SPI, TDM, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. MPC8569CVJANKGB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MPC8569CVJANKGB is an Embedded Processor manufactured by NXP USA Inc. (NXP). Integrated Circuit Microprocessor Mpc85xx operating at 800MHz in 783-Pin BGA Package, housed in a compact 783-FCPBGA (29x29) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 783-BBGA, FCBGA
- Device Package: 783-FCPBGA (29x29)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
