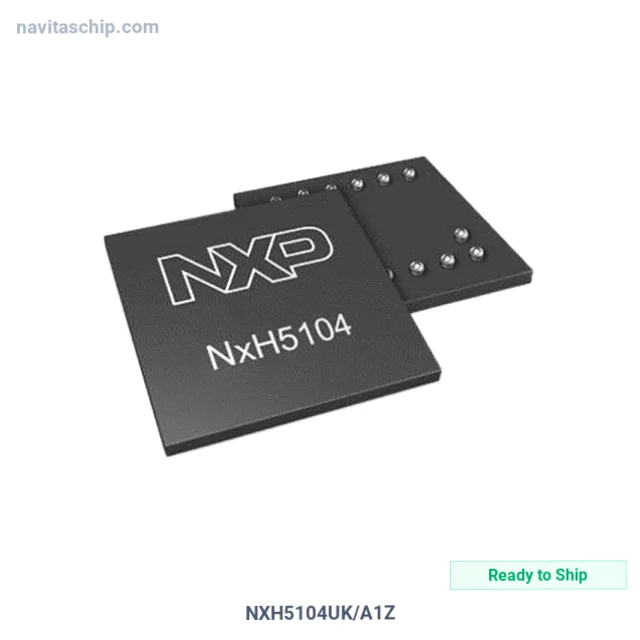

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | NXH5104UK/A1Z |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-7321383 |
| Description | IC EEPROM 4MBIT SPI 13WLCSP |
| Spec | 13-XFBGA, WLCSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 4Mbit |
| Memory Organization | 512K x 8 |
| Memory Interface | SPI |
| Clock Frequency | 10 MHz |
| Voltage - Supply | 1V ~ 2.6V |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 13-WLCSP (2.8x2.74) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. NXH5104UK/A1Z Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NXH5104UK/A1Z is a Memory IC manufactured by NXP USA Inc. (NXP). Integrated Circuit EEPROM 4mbit SPI in 13-Pin WLCSP Package, housed in a compact 13-WLCSP (2.8x2.74) package, with 1V ~ 2.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 1V ~ 2.6V
- Operating Temperature: -20°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 13-XFBGA, WLCSP
- Device Package: 13-WLCSP (2.8x2.74)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
