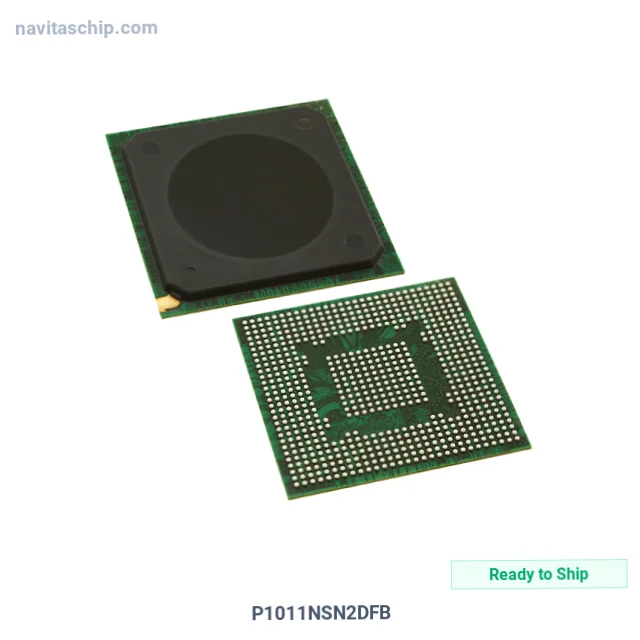

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | P1011NSN2DFB |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-2552242 |
| Description | IC MPU QORIQ P1 800MHZ PBGA689 |
| Spec | 689-BBGA Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | PowerPC e500v2 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 800MHz |
| RAM Controllers | DDR2, DDR3 |
| Graphics Acceleration | No |
| Ethernet | 10/100/1000Mbps (3) |
| USB | USB 2.0 + PHY (2) |
| Operating Temperature | 0°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 689-TEPBGA II (31x31) |
| Additional Interfaces | DUART, I2C, MMC/SD, SPI |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. P1011NSN2DFB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The P1011NSN2DFB is an Embedded Processor manufactured by NXP USA Inc. (NXP). Integrated Circuit Microprocessor Qoriq P1 operating at 800MHz PBGA689, housed in a compact 689-TEPBGA II (31x31) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 689-BBGA Exposed Pad
- Device Package: 689-TEPBGA II (31x31)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
