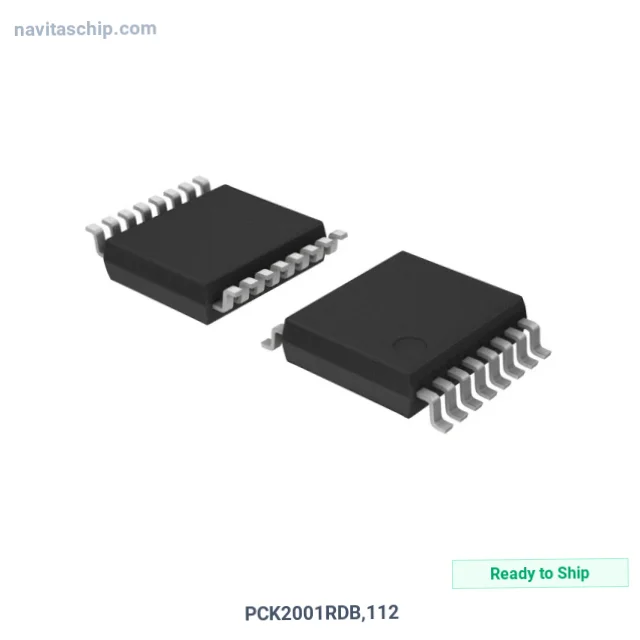

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | PCK2001RDB,112 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-1157133 |
| Description | IC CLK BUFFER 1:6 533MHZ 16SSOP |
| Spec | 16-LSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | NXP USA Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 1:6 |
| Differential - Input | No/No |
| Input | LVTTL |
| Output | LVTTL |
| Frequency - Max | 533 MHz |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. PCK2001RDB,112 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The PCK2001RDB,112 is a Clock Buffer and Driver IC manufactured by NXP USA Inc. (NXP). Integrated Circuit Clock Buffer 1:6 operating at 533MHz in 16-Pin SSOP Package, housed in a compact 16-SSOP package, with 3.135V ~ 3.465V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.135V ~ 3.465V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 16-LSSOP (0.173", 4.40mm Width)
- Device Package: 16-SSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
